Elevator light curtain Infra Red Elevator Door Detector RH-154c

Product Categories

Xi'an Excellent Electromechnical Co.,Ltd

Contact Now

Place of Origin : China

Brand Name : EST

Certification : ISO9001 for elevator parts

Model Number : elevator light curtain

type : elevator parts

Products Name : elevator light curtain

MOQ : 10 Sets

Price : The best price as latest

Packaging Details : 1 PC/Small box,

Delivery Time : 7-10 working days by DHL,EMS,Container ets

Payment Terms : TT, Paypal, Western Union

Supply Ability : 10000 piece /Month

Contact Now

Elevator light curtain Infra Red Elevator Door Detector RH-94c

Products show:

English technical information:

Technical:

Model	RH-154C
Number of diodes	34
Response time	Relay output 61ms
Response time	Transistor output 37ms
Scanning of diodes	154~94
Infrared tube spacing	117.5mm
Protective height	20~1841 mm
Redundancy	Allow a launch tube failure after 120 s shield
Location tolerance	Vertically:+_15mm/7 Front and rear direction:+_3mm/5
Working distance	0~4m
Operating temperature	-20~+65
Anti-light interference force	100000Lux
Exterior Protection class	IP54
Vibration test	X,Y,Z 4 hous;Frequency 20~500Hz;30Hz Sine shock 30 minutes
Environmental Testing	GB/T2423.1-GB/T2423.4
Sound alerts	When the light curtain continuous shutter 15 s, buzzer starting whistle, prompting the customer to leave the door zone

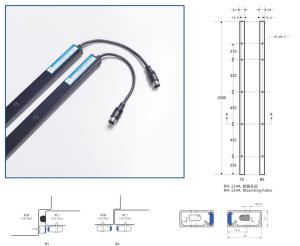

Elevator light curtain Infra Red Elevator Door Detector RH-154c Images
